Providing Superior PUF Roof Sheets for Your Roofing Needs
Understanding the Types and Characteristics of PUF Roof Sheets
Facing
thickness
Thickness Available:
30mm 40mm 50mm 60mm 80mm100mm120mm
A Detailed Look at the Manufacturing of PUF Roof Sheets
Fast To Construct
Manufacturers of PUF roof sheets craft these panels in their production facilities, streamlining the installation process at the designated site. Additionally, the simplicity of installing these PUF roof sheets contributes to time efficiency during deployment.
Insulation – Heat Proof
Distinguished for its unparalleled efficiency and superior insulation capabilities, this product represents a pinnacle in roofing solutions. Our PUF roof sheet manufacturing upholds rigorous standards of quality and performance, resulting in notable savings in heating and cooling expenses.
Strong Load Bearing
Crafted with precision, the PUF panels are engineered to withstand compressive loads up to 1 ton per square foot. Their robust design enables them to bear significant weight across extended spans, whether it’s live or dead load. Thanks to their durable construction, minimal additional support structures are required.
Edge Protect Technology
Innovative EDGE PROTECT technology marks a significant advancement in sealing sheet steel edges within PUF sandwich panels. This cutting-edge weather-resistant coating provides robust protection against corrosion and rust, effectively enhancing the longevity of products manufactured by PUF sandwich panel manufacturers.
Weather Shield For Ultra Long Life
Manufacturers incorporate The Weather Shield coating into their PUF roof sheets, providing an extra layer of thick paint for enhanced weather protection. This UV-resistant coating guarantees durability and resilience, even under direct sunlight. As a result, these PUF roof sheets are renowned for their UV resistance, ensuring enduring quality and performance.
Comprehensive Technical Overview of PUF Roof Sheets
| Panel thickness available | 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm |
| Panel total width | 1070mm |
| Panel effective width | 1000mm |
| Panel length available | 1000mm-15000mm |
| Density | 40± 2kg/m3 |
| Thermal conductivity | 0.024-0.03 W/m |
| Temperature range | -40+800C |
| CFC / HFC | Free from CFC / HFC |
| Type of foam | B1, B2, B3, PIR |
| Heat transfer co-efficient | -0.022W/M2*k |
| Pressure | 0.10Mpa |
| Top coat | 5 + 15 micron |
| Back coat | 5 + 5 micron |
| 500h (ECCA TB) | 100 h (ASTM D 2247) |
CLASSIFICATION BASED ON THICKNESS OF PANEL
50mm puf panel
50mm panels are the most ideal thickness of puf sheet. They offer the best mix of insulation, strength and cost. These are a good choice for all constructions like roof top room, hospital floor, school classrooms, roof top restaurant construction, penthouse etc.
30mm puf panel
30mm panels are the most economical type of panel. They are a good choice as an alternative for metal roofing sheets.
65mm puf panel
65mm panels are a good choice for applications where high levels of insulation are required and where extreme cold or heat is a concern, such as refrigerated warehouses and cold storage facilities
40mm puf panels
40mm panels are thicker than 30mm panels and offer more insulation and strength. They are a good choice for applications where budget is is important factor, such as servant classrooms, staff quarters, temporary offices etc.
105mm puf panel
105mm panels are the thickest type of panel available. They offer the highest levels of insulation and are a good choice for applications where extreme cold or heat is a major concern, such as sub-zero refrigerator, cryogenic chambers and blast freezers.
All things you need to know
Exploring PUF Roof Sheet Production: Comprehensive Insights into Ranges, Pricing, Features, and More

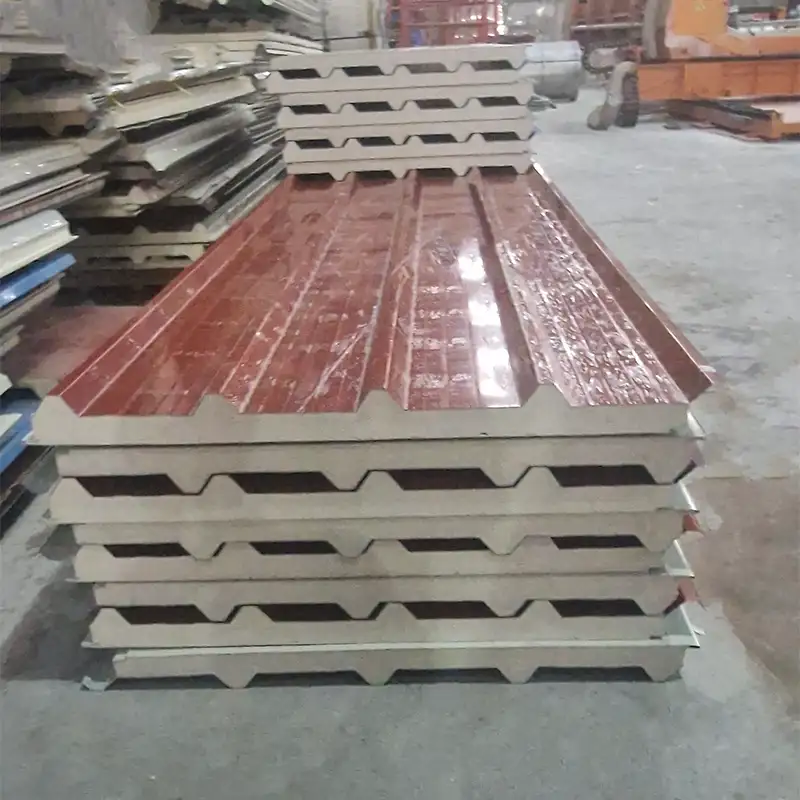

PUF Sheet for Roof
PUF roof sheets combine elegance with functionality, making them the ideal choice for various applications. Experience the perfect blend of style and durability with premium PUF roof sheets. These panels are manufactured using a Continuous Line Production Method and feature five corrugations with a 250mm pitch, along with exterior baby ribs for added strength.
Weather Endurance
Withstand harsh climates effortlessly.
Energy Efficiency
Maintain optimal temperatures, saving on energy bills.
Versatile Application
Ideal for diverse spaces, from warehouses to residential homes.
Get a quote for your project and unlock unbeatable solutions tailored just for you

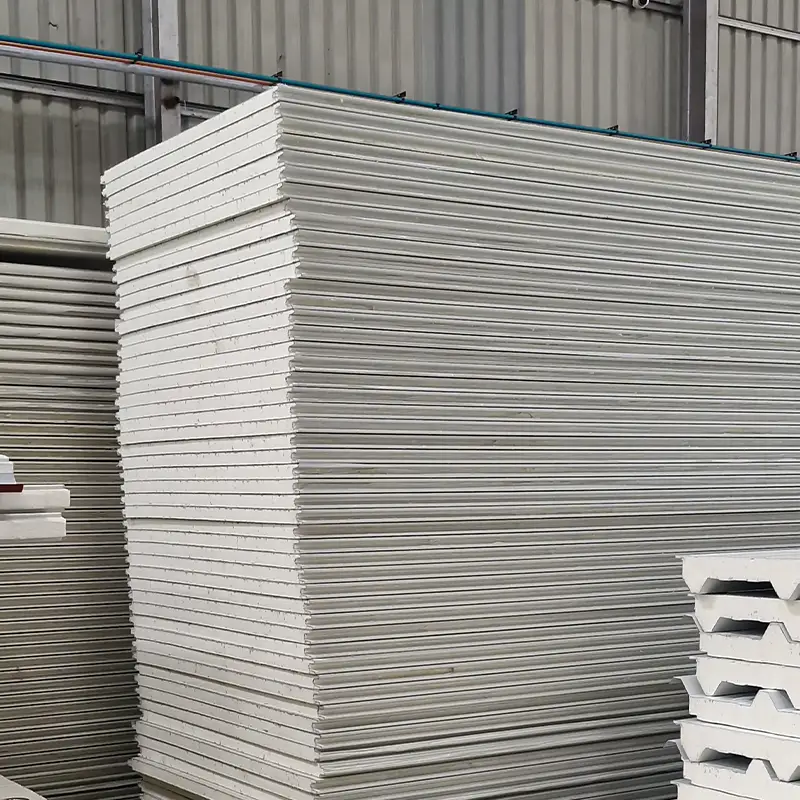

PUF Sheet for Wall
PUF roof sheets provide a lightweight yet robust solution for roofing needs. With superior insulation properties and easy installation, they outperform traditional roofing materials. Available in a variety of dimensions and color selections, including the exclusive Wood Finish Texture option, these PUF roof sheets offer versatility and elegance for any project.
Cost-Effective
40% to 50% cheaper than conventional walls/partitions.
Easy Installation
Lightweight design for effortless setup.
Versatile Design
Options for various thicknesses, colors, and textures.
Get a quote for your project and unlock unbeatable solutions tailored just for you.
